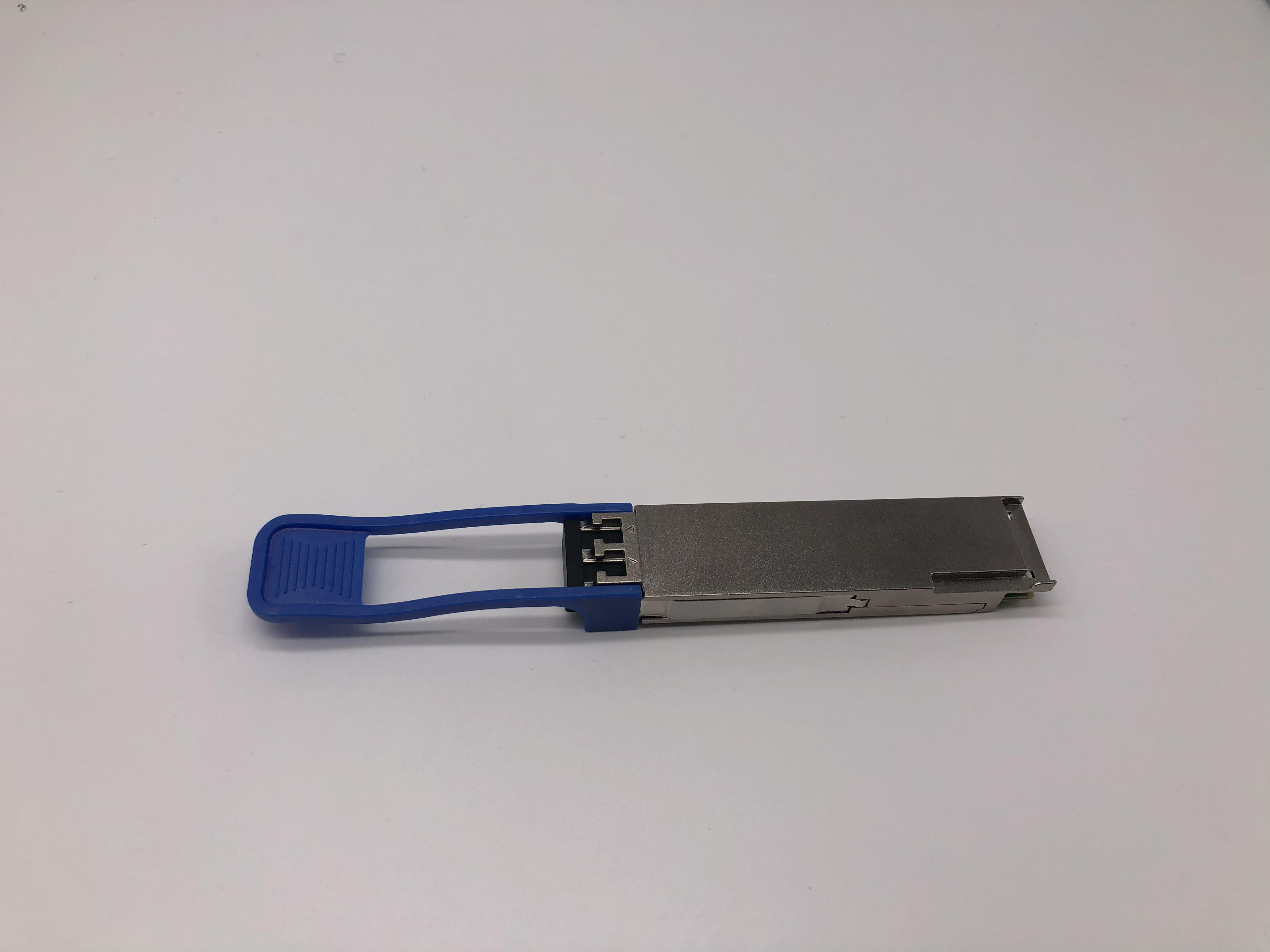

QC-QSFP40G-SR
Features
Compliant to the IEEE 802.3ba(40GBASE-SR4)
Support interoperability with IEEE 802.3ae
10GBASE-SR modules of various form factors such as SFP+ XFP
Compliant to the QSFP+ MSA SFF-8436 Specification
Up to 100m on OM3 and 150m on OM4 MMF
VCSEL array transmitter and PIN array receiver
Single 3.3V Power Supply and Power dissipation < 1.5W
Operates at 10.3125Gbps per channel
Operating Case Temperature: 0℃~+70℃
I2C interface with integrated Digital Diagnostic Monitoring
Utilizes a standard 12/8 lane optical fiber with MPO connector
Safety Certification: TUV/UL/FDA*Note1
RoHS Compliant
Compliant to the IEEE 802.3ba(40GBASE-SR4)
Support interoperability with IEEE 802.3ae
10GBASE-SR modules of various form factors such as SFP+ XFP
Compliant to the QSFP+ MSA SFF-8436 Specification
Up to 100m on OM3 and 150m on OM4 MMF
VCSEL array transmitter and PIN array receiver
Single 3.3V Power Supply and Power dissipation < 1.5W
Operates at 10.3125Gbps per channel
Operating Case Temperature: 0℃~+70℃
I2C interface with integrated Digital Diagnostic Monitoring
Utilizes a standard 12/8 lane optical fiber with MPO connector
Safety Certification: TUV/UL/FDA*Note1
RoHS Compliant
